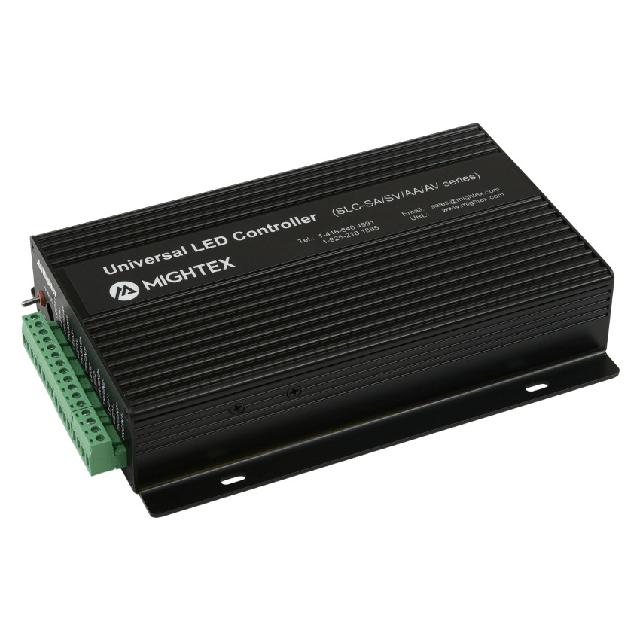

High-Current Universal 2-Channel LED Controllers with External Triggers and up to 2,000mA (CW) & 3,500mA (PWM) Output Current

High-Current Universal 2-Channel LED Controllers with External Triggers and up to 2,000mA (CW) & 3,500mA (PWM) Output Current Description：

Datasheet

Mightex has developed a series of computer-controllable, multi-channel, universal LED drivers, which can be used to drive any type of LED in any of the three (3) modes: ‘NORMAL’ (or ‘constant current’), ‘STROBE’, and/or external ‘TRIGGER’ mode. Each unit comes with PC-based software with a user-friendly GUI, which enables users to drive LEDs without the need to write any code. In addition, a powerful SDK is provided, in order for users to write their own software and to integrate Mightex’s LED drivers into their own systems. Furthermore, the drivers have a built-in security feature, allowing users to limit LED driving current and voltage.

This datasheet covers two (2) product series (i.e. HA and HV series) of High-Precision Universal 2-Channel LED Controllers with External Triggers and up to 2,000mA (CW) & 3,500mA (PWM) Output Current.

Features:

Driving current up to 2A in DC mode and up to 3.5A in pulse mode, with over current protection

Computer controllable

Universal – suitable for any LED

Capable of driving variable loads

User friendly application software with GUI

SDK and Rich RS232 command set included for custom applications

Normal, Strobe and Trigger mode for every channel

Programmable constant current, pulse-width modulation and/or arbitrary waveform

Up to 11.5V output voltage for each channel Programmable rising or falling edge external trigger

Built-in non-volatile memory, can be used without a PC

Applications:

Machine vision

Displays

Microscopy

Semiconductor equipment

Testing instruments

Medical instruments

Lighting

Specifications:

Timing Specifications:
