USB3.0 Monochrome or Color 5MP CMOS Camera (8 or 12 bit)

Updated:2024-03-12

Brand: Mightex
Model: SMN-B050-U
Product description: Super-speed USB3.0 cameras with a fast and high-definition Aptina 5 Megapixel CMOS image sensor. Up to 14 fps in full resolution and up to 350 fps using ROI mode. Comes in color or monochrome, board-l
Data download

Feedback
WeChat

QQ

Online Service

product details

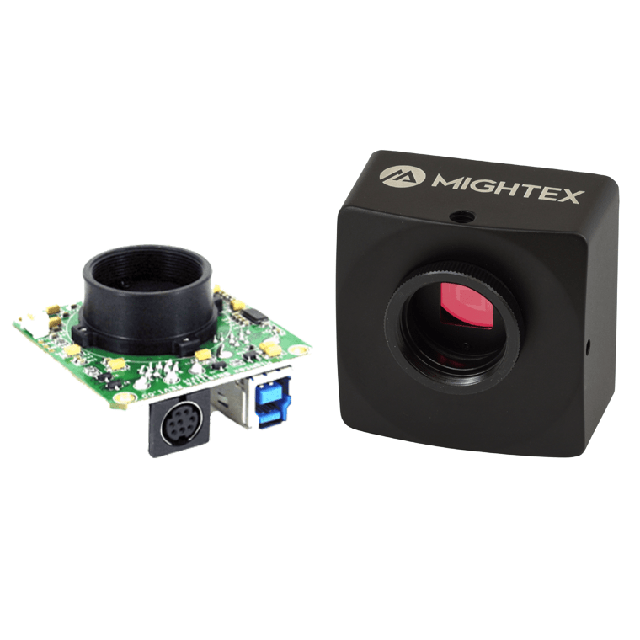

USB3.0 Monochrome or Color 5MP CMOS Camera (8 or 12 bit) Description：

Datasheet

Mightex’s ultrafast USB 3.0 cameras are designed for applications that require high-speed and/or multiple cameras. These cameras are equipped with a super-speed USB3.0 interface that can deliver a transfer rate of up to 400 Mbytes per second, which is 10 times the USB2.0 speed, 3.5 times GigE speed and 6 times Firewire-800 speed. With a fast and high-definition Aptina 5 Megapixel CMOS image sensor that can offer up to 14fps in full resolution and up to 350fps using ROI mode, Mightex USB3.0 cameras are suited for industrial applications that require a great amount of data to be processed and transferred from the camera to the PC. These ultra-compact cameras have external trigger-in, strobe-out, and a powerful engine that supports multiple camera operations. In addition to all these outstanding features, a user-friendly GUI based application software and an SDK are provided for custom software development.

Specifications

Parameters	SMN-C050-U (Color) SMN-B050-U (B/W)	SME-C050-U (Color) SME-B050-U (B/W)	Unit
Board-Level/Enclosed	Board-Level	Enclosed
Number of GPIOs	4	4
Resolution	2,560 x 1,920
Image Sensor	Aptina Micron MT9P031, Rolling Shutter CMOS (ERS or GRR)
Pixel Size	2.2 x 2.2		µm
Scanning System	Progressive
Dynamic Range	70		dB
Sensor SNR	38		dB
Bit Depth	Color: 24 (R/G/B) B/W: 8 or 12 (Switchable)		bit
Responsivity	1.4		V/lux-sec
Frame Rates* (@96MHz Clock)	14 @2560 x1920, 20 @2048 x1536, 31 @1536 x1216, 41 @1280 x1024, 60 @1024 x 768, 105 @768 x 480, 114 @640 x 480, 240 @320 x 240, 350 @192 x 128		fps
Sub Resolutions	Support Arbitrary ROI (Nx, Ny), with Nx and Ny multiples of 64 and 16
Shutter Speed (Exposure Time)	0.05 ~ 750		ms
Hardware Gains	1x ~ 16x
Trigger Mode	With external trigger (Trigger delay < 200µs)
Trigger Cable	ACC-CAM-DIN8
Strobe Out	Yes
Lens Mount	C– mount or CS-mount (M12.5-mount or custom-defined lens mount supported)
Built-in Filters	IR-cut (factory standard) or custom
Power Consumption	< 2.0		W
Dimension	51 x 51 x 29 (CS-mount) 51 x 51 x 34 (C-mount)	58 x 58 x 34 (CS-mount) 58 x 58 x 39 (C-mount)	mm
Weight (excluding lens)	80	150	g
