USB3.0 Monochrome or Color 1.2MP Global Shutter CMOS Camera (8 or 12 bit)

current position:home page>Products>optical instrument>Mightex>

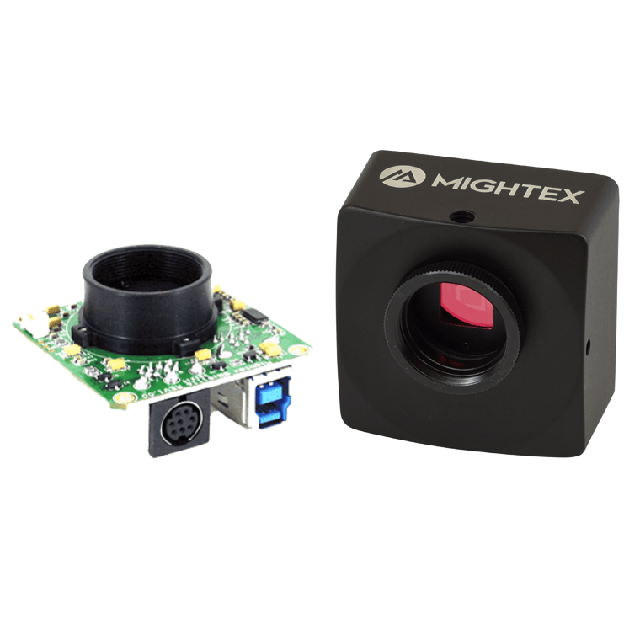

USB3.0 Monochrome or Color 1.2MP Global Shutter CMOS Camera (8 or 12 bit)

Updated:2024-03-13

Brand: Mightex
Model: SMN-B012-U
Product description: Super-speed USB3.0 cameras with a fast Aptina 1.2 Megapixel Global Shutter CMOS image sensor. Up to 60 fps in full resolution and up to 380 fps using ROI mode. Comes in color or monochrome, board-leve
Data download

Feedback
WeChat

QQ

Online Service

product details

USB3.0 Monochrome or Color 1.2MP Global Shutter CMOS Camera (8 or 12 bit) Description：

Datasheet

Mightex’s ultrafast USB 3.0 cameras are designed for applications that require high-speed and/or multiple cameras. These cameras are equipped with a super-speed USB3.0 interface that can deliver a transfer rate of up to 400 Mbytes per second, which is 10 times the USB2.0 speed, 3.5 times GigE speed and 6 times Firewire-800 speed. With the 1.2MP Global Shutter CMOS sensor, the frame rate can be as high as 44 fps in full resolution and up to 300fps using ROI mode. Mightex USB 3.0 cameras are optimized for machine-vision applications, and they can also be used for a wide variety of other applications such as digital microscopy and medical imaging, where quality, ease of use, and cost-effectiveness are crucial. These cameras have external trigger-in, strobe-out, and a powerful camera engine that supports multiple cameras. In addition, a user-friendly GUI based application software and an SDK are provided for custom software development.

Specifications

Parameters	SMN-C012-U^(Color) SMN-B012-U (B/W)	SME-C012-U (Color) SME-B012-U (B/W)	Unit
Board-Level/Enclosed	Board-Level	Enclosed
Number of GPIOs	4	4
Resolution	1,280 x 960
Image Sensor	Aptina MT9M031, Global Shutter CMOS
Pixel Size	3.75 x 3.75		µm
Scanning System	Progressive
Dynamic Range	64		dB
Sensor SNR	38		dB
Bit Depth	Color: 24 (R/G/B) B/W: 8/12 (Switchable)		bit
Responsivity	6.1/5.3		V/lux-sec
Frame Rates* (@96MHz Clock)	60 @1280×960 70 @1024×768 110 @768×480 110 @640×480 200 @320×240 325 @192×128 380 @64×64		fps
Sub Resolutions	Support Arbitrary ROI (Nx, Ny), with Nx and Ny multiples of 64 and 16
Shutter Speed (Exposure Time)	0.05 ~ 750		ms
Hardware Gains	1x ~ 8x
Trigger Mode	With external trigger (Trigger delay < 600µs)
Trigger Cable	ACC-CAM-DIN8
Strobe Out	Yes
Lens Mount	C– mount or CS-mount (M12.5-mount or custom-defined lens mount supported)
Built-in Filters	IR-cut (factory standard) or custom
Power Consumption	< 2.0		W
Dimension	51 x 51 x 29 (CS-mount) 51 x 51 x 34 (C-mount)	58 x 58 x 34 (CS-mount) 58 x 58 x 39 (C-mount)	mm
Weight (excluding lens)	80	150	g
