SQ-615-SS 400-750 nm 0-5 V output ePAR Sensor

Updated:2023-01-12

Views:884

  • Brand: Apogee
  • Model: SQ-615-SS
  • Description: Apogee's newest, cutting-edge ePAR sensor was created in 2021 as an upgrade to our ePFD sensor and designed to measure the newly defined 400-750 nm ePAR radiation range that research has shown to be..
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

Overview of SQ-615-SS 400-750 nm 0-5 V output ePAR Sensor:

User's Manual

Apogee's newest, cutting-edge ePAR sensor was created in 2021 as an upgrade to our ePFD sensor and designed to measure the newly defined 400-750 nm ePAR radiation range that research has shown to be photosynthetically active, beyond the traditional 400-700 nm range. The SQ-615 ePAR is an amplified sensor with a 0-5 V output. The sensor features a rugged, aluminum housing that is fully-submersible and built to withstand harsh conditions, and high-quality cable terminating in pre-tinned pigtail leads for easy connection to dataloggers and controllers. The sensor cable includes an IP68 marine-grade stainless-steel cable connector to simplify sensor removal and replacement from permanent installations for maintenance and calibration. Typical applications of ePAR sensors include measuring total ePAR intensity over plant canopies in all growing environments, monitoring and adjusting grow lights, and researching plant morphogenic activity and photobiology. Many next generation LED fixtures, the sun, and other light sources emit these newly confirmed Far-red photosynthetic wavelengths, but they have not been measurable by traditional 400-700 nm PAR meters until now.







The analog version of this sensor (SQ-610) comes with the inline cable connector placed 30 cm from the sensor head for either standard use as a long-cable pigtail sensor, or for use with our microCache Bluetooth Micro Logger by unscrewing the connector, discarding the long section of cable and then screwing the sensor to the mating connector on the microCache.

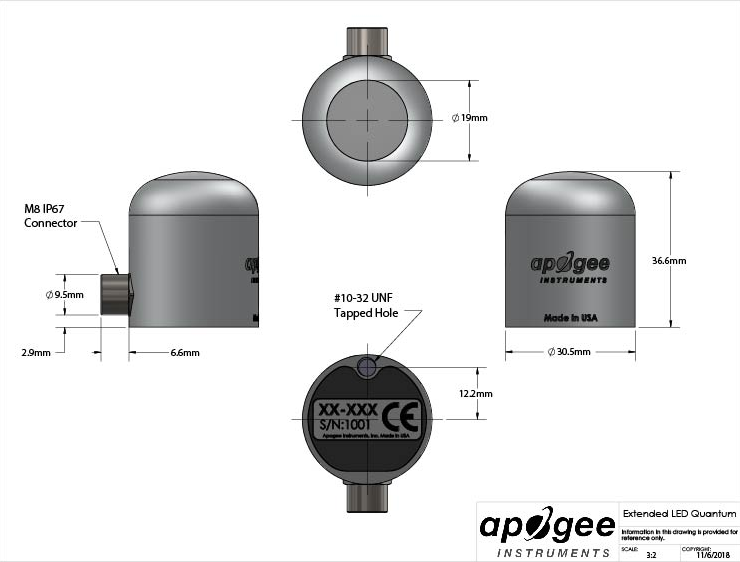

SQ-615-SS Sensor Drawing:

Specifications of SQ-615-SS:

Power Supply 5.5 to 24 V DC
Current Draw at 12 V is 57 µA
Output (Sensitivity) 1.25 mV per µmol mˉ² sˉ¹
Calibration Factor (Reciprocal of Sensitivty) 0.8 µmol mˉ² sˉ¹
Calibration Uncertainty ± 5 %
Calibrated Output Range 0 to 5 V
Measurement Range 0 to 4000 µmol mˉ² sˉ¹
Measurement Repeatability Less than 0.5 %
Long-term Drift (Non-stability) Less than 2 % per year
Non-linearity Less than 1 % (up to 4000 µmol mˉ² sˉ¹)
Response Time Less than 1 ms
Field of View 180˚
Spectral Range 400 to 750 nm ± 5 nm (wavelengths where response is greater than 50 %)
Directional (Cosine) Response ± 2 % at 45°; ± 5 % at 75°
Azimuth Error Less than 0.5 %
Tilt Error Less than 0.5 %
Temperature Response -0.11 ± 0.04 % per C
Uncertainty in Daily Total Less than 5 %
Housing Anodized aluminum body with acrylic diffuser
IP Rating IP68
Operating Environment -40 to 70 C; 0 to 100 % relative humidity; can be submerged in water up to depths of 30 m
Dimensions 30.5 mm diameter, 37 mm height
Mass (with 5 m of cable) 140g
Cable 5 m of two conductor, shielded, twisted-pair wire; TPR jacket; pigtail lead wires; stainless steel (316), M8 connector
Warranty 4 years against defects in materials and workmanship
Manufactured Made in the USA
