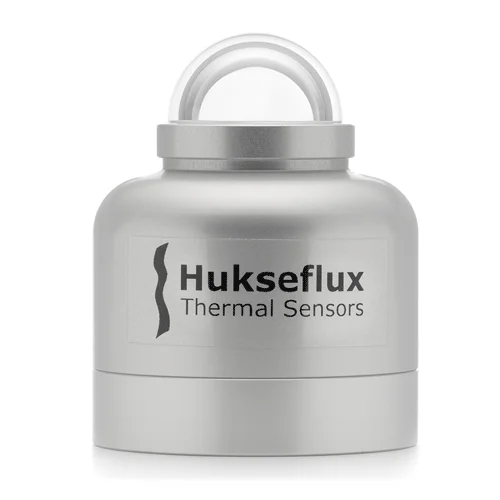

SR05-D2A2 Solar Radiation Sensor

Updated:2023-05-31

Views:1149

  • Brand: Hukseflux
  • Model:SR05-D2A2
  • Description: SR05 series is the most affordable range of pyranometers meeting ISO 9060 second class requirements. SR05 measures solar radiation received by a plane surface, in W/m², from a 180 ° field of view angl
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

SR05-D2A2 Solar Radiation Sensor: User's Manual Datasheet

SR05 series is the most affordable range of pyranometers meeting ISO 9060 second class requirements. SR05 measures solar radiation received by a plane surface, in W/m², from a 180 ° field of view angle. It is ideal for general solar radiation measurements in (agro-)meteorological networks and PV monitoring. The pyranometer is easy to mount and install, in particular with SR05’s ball levelling mechanism. Various outputs are available, both digital and analogue, for ease of integration. Version SR05-D2A2 offers Modbus over TTL and 4-20 mA output.

SR05 pyranometer mounting and leveling

Optionally SR05 has a unique ball levelling mechanism and tube mount for easy mounting and levelling on a (non-)horizontal surface or tube. As is shown in the images.

Design and Output

SR05 pyranometer employs a thermopile sensor with black coated surface, one dome and an anodised aluminium body with visible bubble level. SR05 has a variety of industry standard outputs, both digital and analogue:

  • SR05-D1A3: digital sensor with Modbus over RS-485 and analogue 0-1 V output
  • SR05-D2A2: digital sensor with Modbus over TTL and analogue 4–20 mA output
  • SR05-A1: analogue sensor with analogue millivolt output
  • Suggested Use

  • general solar radiation measurements
  • (agro-)meteorological networks
  • PV power plant monitoring
  • Areas of Application

  • Meteorology / surface energy flux measurement
  • Solar energy / PV system performance monitoring
  • SR05-D2A2 Solar Radiation Sensor Specifications:

    Measurand hemispherical solar radiation
    ISO 9060:2018 classification class C (second class)
    IEC 61724-1:2017 compliance class C
    Application PV monitoring commercial and utility scale, PV monitoring small sized
    Heater no
    Output 0-1 V
    Calibration uncertainty <1.8% (k=2)
    Calibration traceability to WRR
    Spectral range (wavelength) 285 to 3000 ×10⁻³ m
    Rated operating temp range -40 to +80 °C
    Standard cable length 3 m
    Rated operating voltage 5 to 30 VDC
    Levelling ball leveling, optionally with tube mount
    Digital output :
    Communication protocol Modbus over 2-wire RS-485
    Transmission mode RTU
    Baud rates 1200, 2400, 9600, 19200, 38400 and 115200
    Compatibility IMT-Solar Si-RS485TC-T-MB; other cells upon request
    Analogue output :
    Voltage output 0 to 1 V cable lengths: 10, 20 m
    Version order codes SR05-D1A3-PV, SR05-D1A3-PV-BL, SR05-D1A3-PV-TMBL
    Options • Cable lengths: 10, 20 m
    • Cable lengths: 10, 20 m
    • Extension cable with connector pair: 10, 20 m
    • With ball levelling (-BL)
    • With ball levelling and tube mount (for tube diameters 25 – 40 mm, -TMBL)
    • PMF01 mounting fixture for Plane of Array installation
    • Compatibility: SR05-D1A3-PV’s Modbus interface is exchangeable with IMT-Solar Si- RS485TC-T-MB PV reference cell’s interface. Other reference cells upon request.
