WinCamD-IR-BB

Updated:2024-05-23

Brand: DataRay
Model: WinCamD-IR-BB
Product description: The WinCamD-IR-BB is an ideal imaging solution for lasers in the MWIR and FIR range. With 17 µm pixels, a wavelength range of 2 to 16 µm, and an integrated shutter, the WinCamD-IR-BB offers unparallel
Data download

Feedback
WeChat

QQ

Online Service

product details

WinCamD-IR-BB Description：

Product Manual Datasheet Drawing

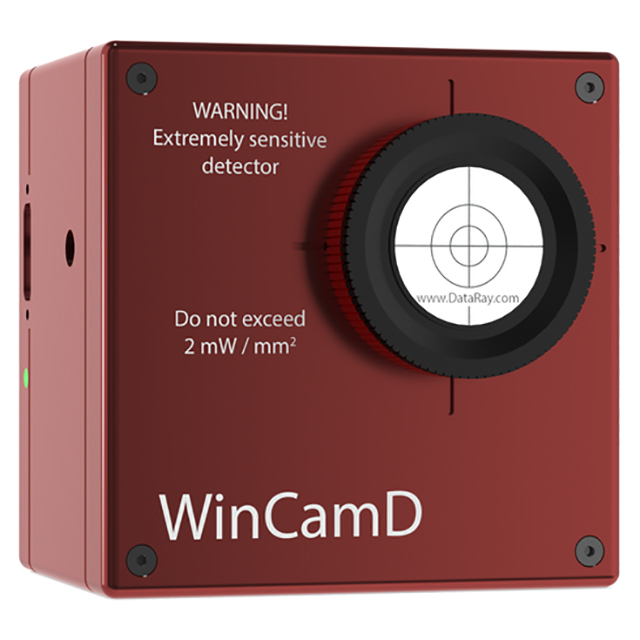

The WinCamD-IR-BB is an ideal imaging solution for lasers in the MWIR and FIR range. With 17 µm pixels, a wavelength range of 2 to 16 µm, and an integrated shutter, the WinCamD-IR-BB offers unparalleled beam profiling capabilities. With a signal-to-noise ratio that exceeds 1000:1, the WinCamD-IR-BB is capable of ISO 11146-compliant beam measurements. The microbolometer-based camera features very high sensitivity, and the integrated shutter allows for fully automated non-uniformity correction.

Key Features

Broadband 2 to 16 µm VOx microbolometer

640 x 480, 17 µm pixels

10.8 x 8.2 mm active area

Low irradiance capability: ~75 µW/cm2 at 5 x peak-to-peak noise

30 fps (7.5 fps for export)

Port-powered USB 3.0; no power brick required

No chopper/TEC

Integrated shutter allowing for

HyperCal™ – Dynamic Noise and Baseline Correction software

Automated non-uniformity correction (NUC)

≥1000:1 Signal to RMS Noise

14-bit ADC

14 ms thermal time constant

Measure pulsed lasers with PRR ≥1 kHz

Parallel capture on multiple cameras

ISO 11146 M2 option - beam propagation analysis, divergence, focus finding

Example Applications

MWIR/FIR/CO₂ laser profiling

Field servicing of MWIR/FIR/CO₂ lasers and laser-based systems

Optical assembly & instrument alignment

Beam wander & logging

M² measurement with available M2DU stage

Specification

Sensor	Vanadium oxide (VOx) microbolometer
Wavelength	Broadband MWIR/FIR: 2 to 16 µm
Pixel Count, H x V	307 kilopixels, 640 x 480
Image Area	10.88 x 8.16 mm
Pixel Dimension	17 x 17 µm
Min. Beam (10 pixels)	~170 µm
Shutter Type	Rolling
Max. Full Frame Rate	30 Hz (7.5 for export)
Signal to RMS Noise	≥1000:1
Opt./Elec. dB	30/60
ADC	14-bit
Measurable Sources	CW beams, pulsed sources (auto-trigger sync)

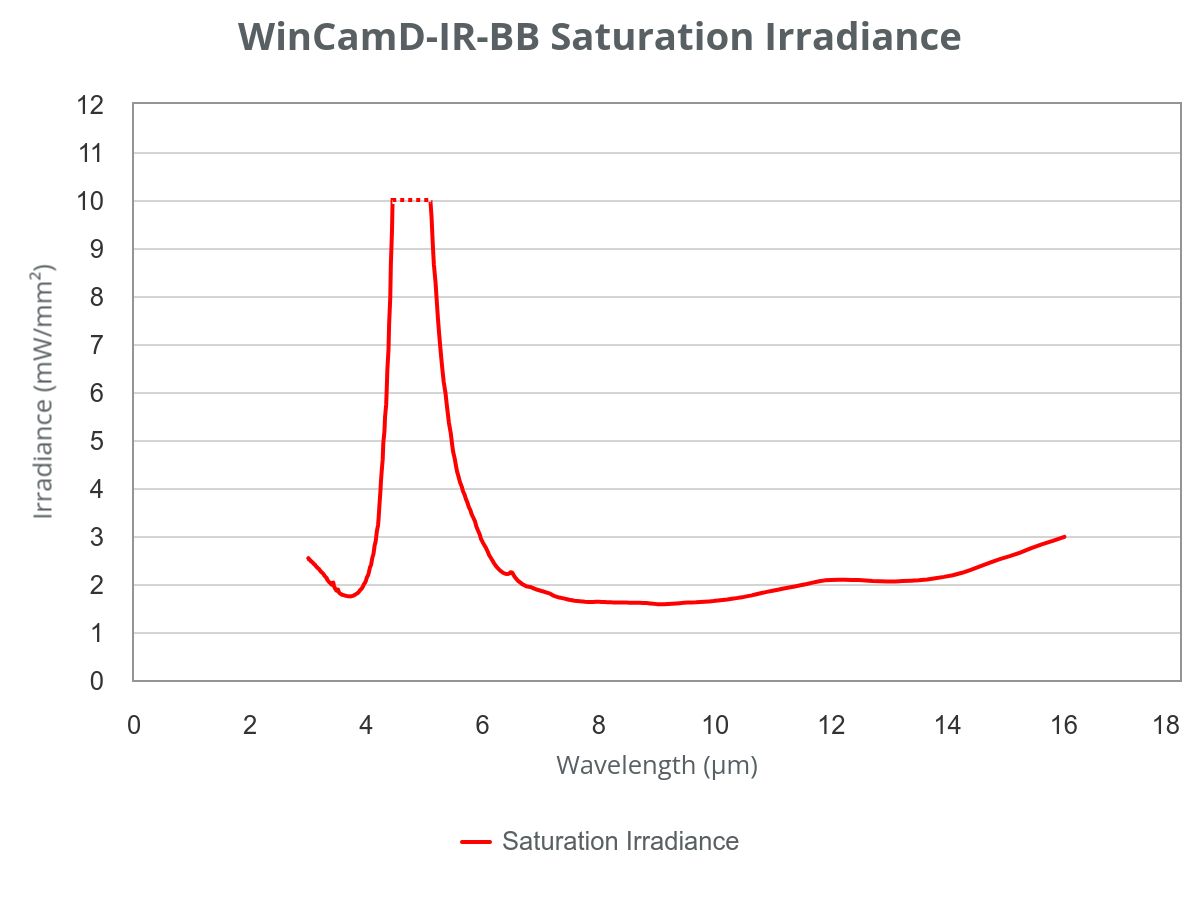

Measured Beam Powers	See the Approximate Saturation Power Limits graph
Manual Beam Attenuation	Provided 1" ND-1 and ND-2 reflective Germanium filters.
Displayed Profiles	2-D & 3-D plots 10, 16, 256 or max colors or gray. Contoured display at 10 and 16 color.
Measured & Displayed Profile Parameters	Raw and smoothed profiles [Triangular running average filter up to 10% FWHM]
Beam Diameter	Diameter at two user set Clip levels Gaussian & Second Moment beam diameters Equivalent diameter above a user defined Clip level Equivalent Slit and Knife Edge diameters
Beam Fits	Gaussian & Top Hat profile fit & % fit Equivalent Slit profile
Beam Ellipticity	Major, Minor & Mean diameters. Auto-orientation of axes.
Centroid Position	Relative and absolute Intensity Weighted Centroid and Geometric Center Beam Wander Display and Statistics
Measurement Accuracy	5 µm processing resolution for interpolated diameters Absolute accuracy is beam profile dependent - ~10 µm accuracy is frequently achievable Centroid accuracy is also beam dependent. It can be as good as ±10 µm since it is arithmetically derived from all pixels above the centroid clip level.
Processing Options	Image & profile Averaging, 1, 5, 10, 20, Continuous. Background Capture and Subtraction. User set rectangular Capture Block for capture User set or Auto ellipse Inclusion region with beam tracking for processing *.ojf files save all WinCamD custom settings for particular test configurations
Pass/Fail display	On-screen selectable Pass/Fail colors. Ideal for QA & Production.
Log data and statistics	Min., Max., Mean, Standard Deviation, to 4096 samples
Relative Power Measurement	Rolling histogram based on user's initial input. Units of mW, µJ, dBm, % or user choice (relative to a reference measurement input)
Fluence	Fluence, within user defined area
Certification	RoHS, WEEE, CE
Multiple Cameras	Up to 4 cameras, parallel capture. 1 to 8 cameras, serial capture.
Camera Dimensions‚ Width x Height x Depth	2.8 x 2.8 x 2.0 in. (73 x 73 x 52 mm)
Optical depth from housing/filter to sensor ±0.2 mm	15.5 mm
Mounting	1/4"-20 holes aligned with sensor center
Weight (Camera with 1" NDL-2 Ge filter)	422 g (14.9 oz)
