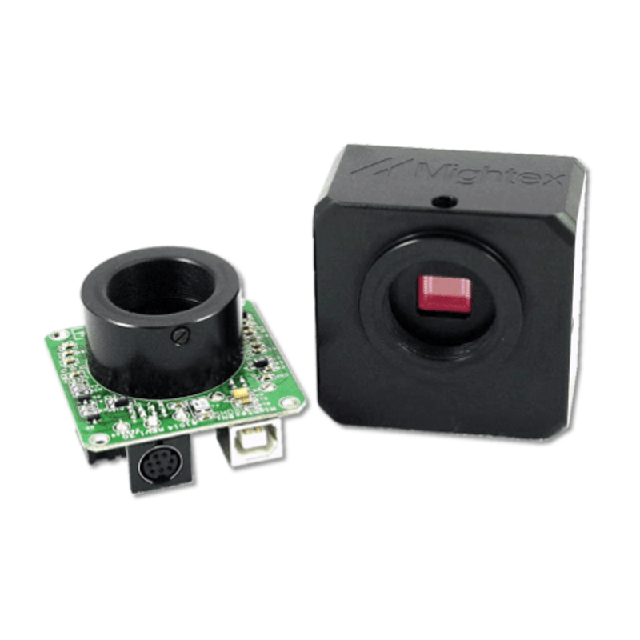

USB2.0 Monochrome 1.3MP CMOS Cameras, Enclosed

Updated:2024-03-18

Brand: Mightex
Model: MCN-B013-U, GLN-B013-U, MCE-B013-U, MLE-B013-U
Product description: Mightex USB 2.0 monochrome cameras are designed for a wide variety of applications such as machine vision, digital microscopy and medical imaging, where quality, ease of use, and cost-effectiveness ar
Data download

Feedback
WeChat

QQ

Online Service

product details

USB2.0 Monochrome 1.3MP CMOS Cameras, Enclosed Description：

Datasheet

Mightex USB 2.0 monochrome cameras are designed for a wide variety of applications such as machine vision, digital microscopy and medical imaging, where quality, ease of use, and cost-effectiveness are crucial. With a USB2.0 interface and powerful PC software, the camera delivers excellent quality images, and the frame rate can be as high as 24 fps in full resolution and up to 600 fps using ROI mode. In addition, a user-friendly GUI based application software and an SDK are provided for custom software development. The cameras have 4-pin GPIOs and optional built-in LED drivers. A DirectShow driver and a TWAIN driver are also provided in order to easily link the cameras with users’ applications.

Features:

Higher resolution than color sensors

Built-in LED drivers

4-pin GPIOs

Higher sensitivity especially in IR

Simpler data processing

1280 x 1024 active imaging pixels

High-speed USB2.0 (480Mb/s)

Low noise

24fps @1280×1024 至 200fps @320×240 至 600fps @32×32

Digital output, no need for frame grabber

Custom programmable with SDK provided

TWAIN driver

DirectShow driver

External and software trigger

Strobe output for external flash

ROI & pixel skipping/binning

No need for external power supply

OEM versions available

Applications:

Machine vision

Digital microscopy

Medical imaging

Semiconductor equipment

Test instruments

Document scanners

2D barcode readers

Web camera and security video

Specifications

Parameters	MCN-B013-U MCN-B013-US	GLN-B013-U GLN-B013-US	MCE-B013-U MCE-B013-US	MLE-B013-U MLE-B013-US	Unit
Board-Level/Enclosed	Board-Level	Board-Level	Enclosed	Enclosed
Number of GPIOs	4	No	4	No
Built-in LED Drivers	No	Yes	No	Yes
Resolution	1,280 x 1,024 Monochrome
CMOS Chip	½" (5:4) Micron MT9M001, Rolling Shutter
Pixel Size	5.2 x 5.2				μm
Active Imager Size	6.66 x 5.32				mm
Scanning System	Progressive
Dynamic Range	68				dB
Sensor SNR	45				dB
Gray Level	8				bit
Responsivity	2.1				V/lux-sec
Frame Rates* (@48MHz Clock)	24 @1280x1024 32 @1024x768 50 @800x600 70 @640x480 180 @320x240 300 @160x120 450 @64x64 600 @32x32				fps
Sub Resolutions	1024x768, 800x600, 640x480, 320x240, 160x120, 64x64, 32x32
Shutter Speed (Exposure Time)	0.04 ~ 750				ms
Hardware Gains	12				dB
Trigger Mode	With external trigger
Trigger Cable	ACC-CAM-DIN8
Lens Mount	C– mount or CS-mount (M12.5-mount or custom-defined lens mount supported)
Built-in Filters	IR-cut (factory standard), No filter, or IR-pass
Power Consumption	< 1.0 (excluding LED drivers, if applicable)				W
Number of LED Driver Channels	N.A.	4	N.A.	4
LED Driver Max. Output Voltage	N.A.	5	N.A.	5	V
LED Driver Max. Output Current (total)	N.A.	250	N.A.	250	mA
Dimension	51 x 51 x 29 (CS-mount) 51 x 51 x 34 (C-mount)		58 x 58 x 34 (CS-mount) 58 x 58 x 39 (C-mount)		mm
Weight (excluding lens)	48		150		g
* The actual achievable frame rate may vary, depending on exposure time setting as well as available PC resources.
