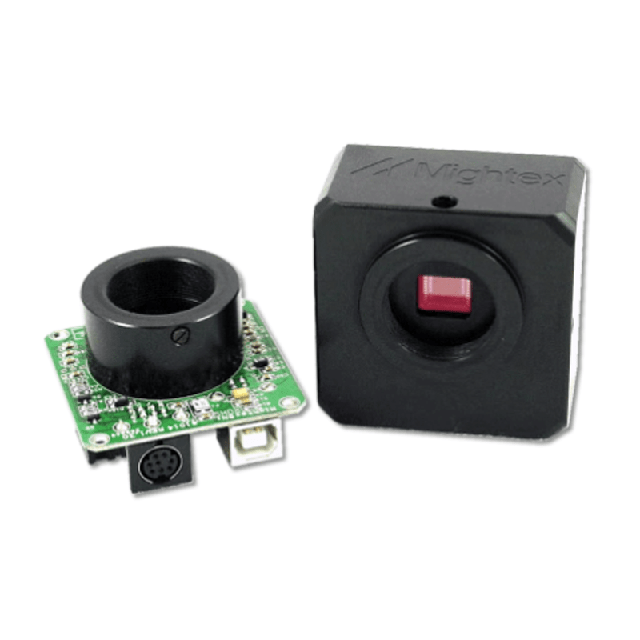

USB2.0 Monochrome 1.3MP CMOS Cameras, Board-Level

USB2.0 Monochrome 1.3MP CMOS Cameras, Board-Level Description：

Datasheet

Mightex USB 2.0 monochrome cameras are designed for a wide variety of applications such as machine vision, digital microscopy and medical imaging, where quality, ease of use, and cost-effectiveness are crucial. With a USB2.0 interface and powerful PC software, the camera delivers excellent quality images, and the frame rate can be as high as 24 fps in full resolution and up to 600 fps using ROI mode. In addition, a user-friendly GUI based application software and an SDK are provided for custom software development. The cameras have 4-pin GPIOs and optional built-in LED drivers. A DirectShow driver and a TWAIN driver are also provided in order to easily link the cameras with users’ applications.

Features:

Higher resolution than color sensors

Built-in LED drivers

4-pin GPIOs

Higher sensitivity especially in IR

Simpler data processing

1280 x 1024 active imaging pixels

High-speed USB2.0 (480Mb/s)

Low noise

24fps @1280×1024 至 200fps @320×240 至 600fps @32×32

Digital output, no need for frame grabber

Custom programmable with SDK provided

TWAIN driver

DirectShow driver

External and software trigger

Strobe output for external flash

ROI & pixel skipping/binning

No need for external power supply

OEM versions available

Applications:

Machine vision

Digital microscopy

Medical imaging

Semiconductor equipment

Test instruments

Document scanners

2D barcode readers

Web camera and security video
