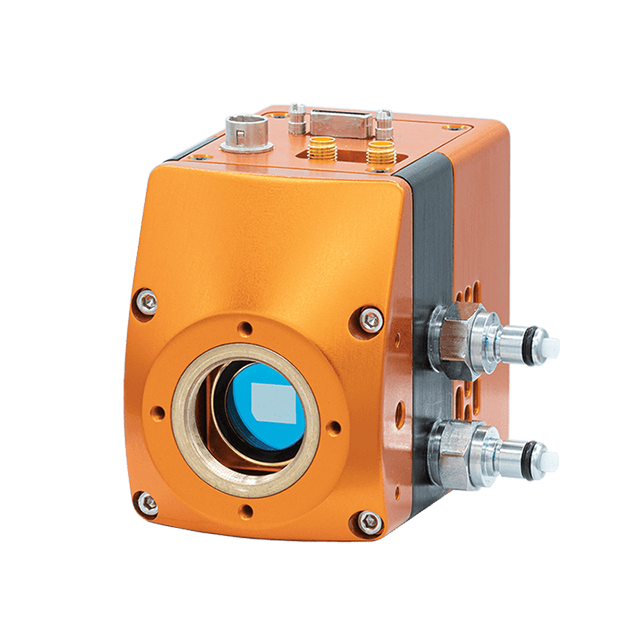

Raptor Photonics Ninox 1280 High resolution, low noise, cooled, digital VIS-SWIR InGaAs camera

Raptor Photonics Ninox 1280 High resolution, low noise, cooled, digital VIS-SWIR InGaAs camera Description：

US Letter Datasheet A4 Datasheet User's Manual

Using a 1280 x 1024 InGaAs sensor, the Ninox 1280 offers visible extension from 0.6µm to 1.7µm to enable high sensitivity scientific imaging. With cooling to -15°C, the camera achieves typical dark current readings of <2,000e/p/s at this temperature, allowing for longer exposure times. This is one of the lowest dark current readings on the market for a HD resolution SWIR camera. The 10µm x 10µm pixel pitch enables the highest resolution imaging. The camera will offer ultra-high intrascene dynamic range of 69dB enabling simultaneous capture of bright & dark portions of a scene.

Available with a 12-bit Camera Link output, the Ninox 1280 will run from 10Hz up to 60Hz. The camera will feature on-board Automated Gain Control (AGC) which will enable the best contrast imaging from low to bright light as well as an on-board intelligent 3 point Non-Uniform Correction (NUC) algorithm, providing the highest quality images. As with all Raptor cameras, the Ninox 1280 is compact and rugged.

Key Features

VIS-SWIR technology – Enables high sensitivity imaging from 0.6μm to 1.7μm

HD Format (1280 x 1024) – The best resolution available in VIS-SWIR region

10μm x 10μm pixel pitch – Enables the highest resolution VIS-SWIR image

< 50 electrons readout noise – Enables the highest SWIR detection limit

Cooled to -15°C – Enables low dark current for longer exposures

Ultra high intrascene dynamic range – 69dB – Enables simultaneous capture of bright & dark portions of a scene

On-board intelligent 3 point NUC – Enables highest quality images

Applications

Art Inspection

Astronomy

Beam profiling

Hyperspectral Imaging

Microscopy

Semiconductor Inspection

Solar Cell Inspection

Thermography

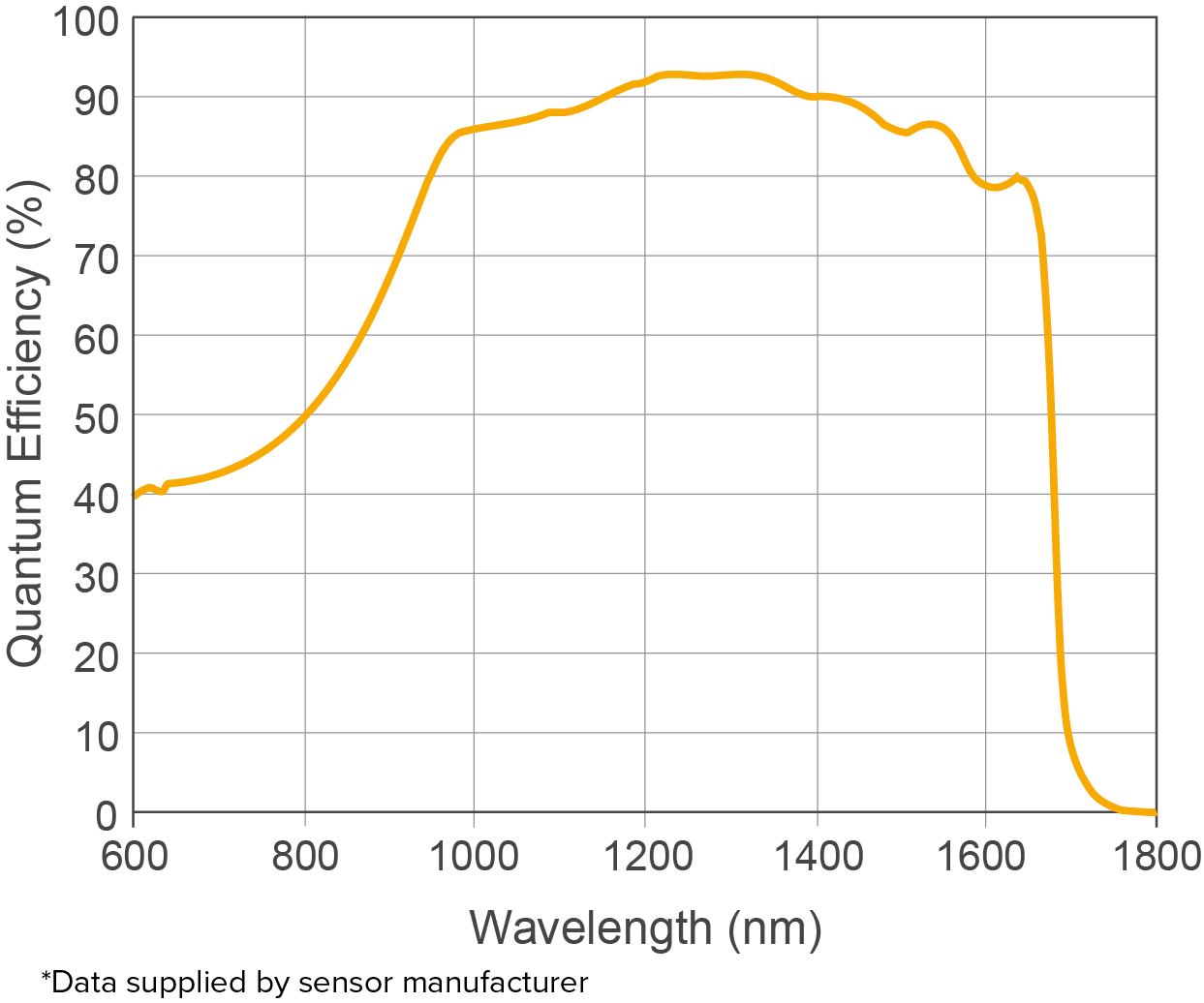

QE Curves
