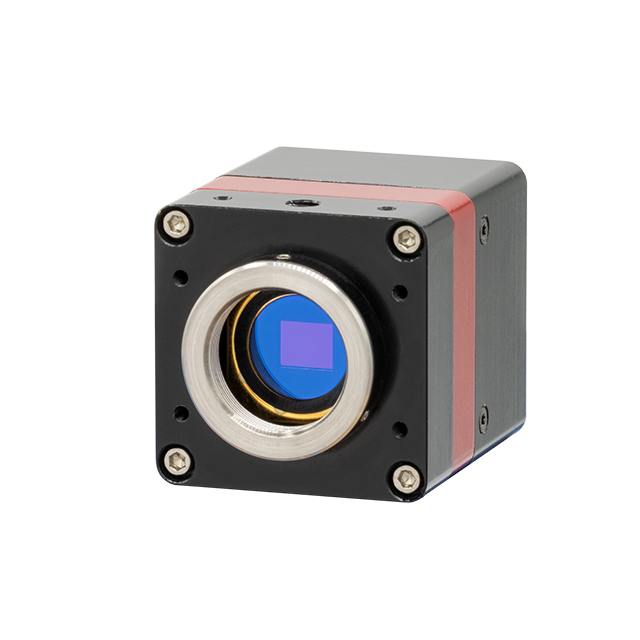

Raptor Photonics Owl 320 HS High Speed, Digital SWIR Camera

Updated:2024-12-27

Brand: Raptor Photonics
Model: Owl 320 HS
Description: The Owl 320 HS offers the fastest frame rates available in the Owl camera line-up (up to 349Hz in full frame resolution), perfect for high speed VIS-SWIR applications (0.6µm – 1.7µm). With Region of I
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Raptor Photonics Owl 320 HS High Speed, Digital SWIR Camera Description：

US Letter Datasheet A4 Datasheet User's Manual

The Owl 320 HS offers the fastest frame rates available in the Owl camera line-up (up to 349Hz in full frame resolution), perfect for high speed VIS-SWIR applications (0.6µm – 1.7µm). With Region of Interest (ROI) control, faster frame rates in the kHz region are achievable by setting smaller ROIs.

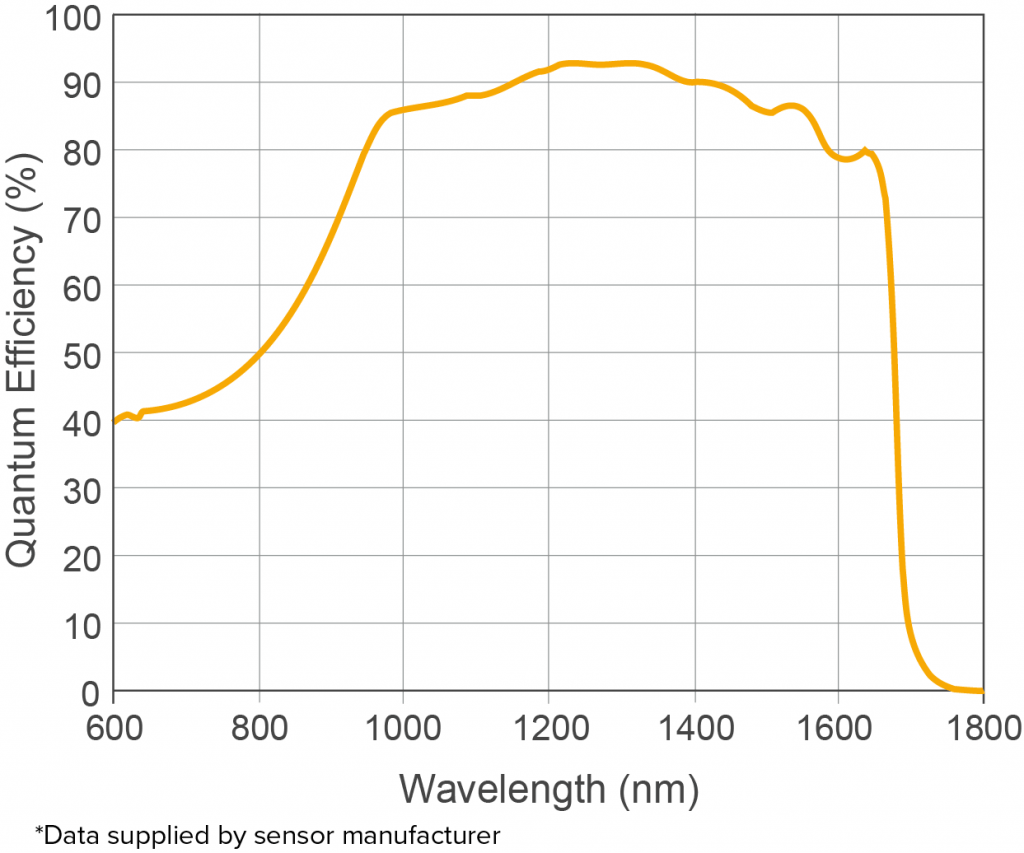

Featuring a State of the Art high sensitivity InGaAs sensor, the camera offers a full-frame pixel resolution of 320 x 256, with a pixel pitch of 30µm x 30µm.

Key Features

SWIR technology | Enables high-speed imaging from 0.6µm to 1.7µm

Easy control of camera parameters | Control of Exposure, Frame rate, Gain, Temperature, trigger, etc

Ultra compact, Low power (< 5W) | Ideal for hand-held, mobile or airborne systems

Rugged, No fan | Enables integration into UAV, handheld or Electro-Optic systems

Applications

Astronomy

Beam Profiling

Hyperspectral Imaging

Semiconductor Inspection

Solar Cell Inspection

Thermography
