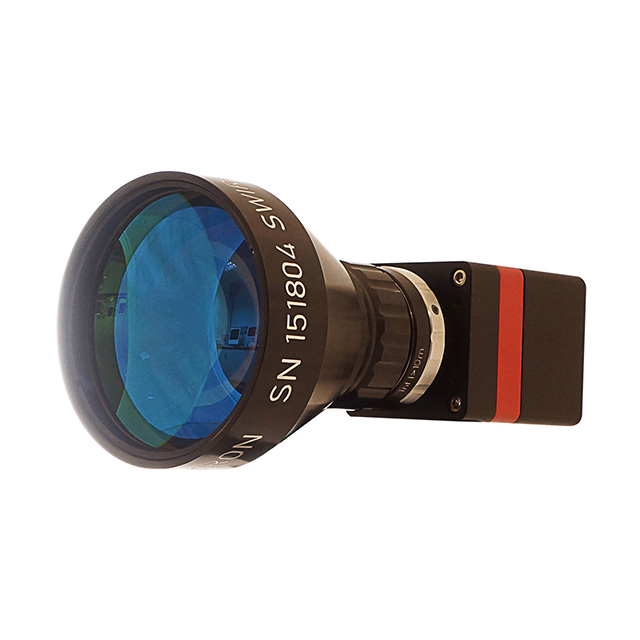

Raptor Photonics Owl 640 A VGA Resolution, Low Noise, VIS-SWIR Camera

Raptor Photonics Owl 640 A VGA Resolution, Low Noise, VIS-SWIR Camera Description：

US Letter Datasheet A4 Datasheet

The Owl 640 A is a variant of the Owl 640 family that offers an analog output. The camera is a rugged, high sensitivity VIS-SWIR camera. Using a 640 x 512 InGaAs sensor from SCD, the Owl 640 A enables high sensitivity imaging from 0.6µm to 1.7µm. With less than 50 electrons readout noise and a peak quantum efficiency >90%, the camera enables high detection in the VIS-SWIR spectrum.

The Owl 640 A complies with the video standards CCIR (25Hz) and EIA (30Hz). The camera features an on-board intelligent Automated Gain Control (AGC) which enables clear video in all light conditions. The camera also features an on-board intelligent 3 point Non-Uniformity Correction (NUC) which provides the highest quality images.

Key Features

VIS-SWIR Technology | Compatible with VIS-SWIR illuminators, markers & pointers

15µm x 15µm Pixel Pitch | Enables the highest resolution VIS-SWIR image

High Intra-scene Dynamic Range | Enables simultaneous capture of bright & dark portions of a scene

On-board Automated Gain Control (AGC) | Enables clear video in all light conditions

Ultra Compact, Low Power | Ideal for hand-held, mobile or airborne systems

Applications

860, 1064 & 1550nm laser line detection

Active Imaging

Airborne Payload

Hand Held Goggles

Vision enhancement

Imaging through fog

Range finding

Vision Enhancement

Maritime / Coastal Surveillance

UAV

QE Curves
