SBG01 Water-cooled Sensor

Updated:2023-01-29

Brand: Hukseflux
Model: SBG01
Product description: SBG01 is a water-cooled sensor that measures heat flux. The ISO standards call this a heat flux meter. Introduced in 2008, SBG01 has rapidly become the sensor of choice for fire testing. SBG01 is main
Data download

Feedback
WeChat

QQ

Online Service

product details

Overview of SBG01 Water-cooled Sensor：

User Manual Instructions

There are 6 models of SBG01

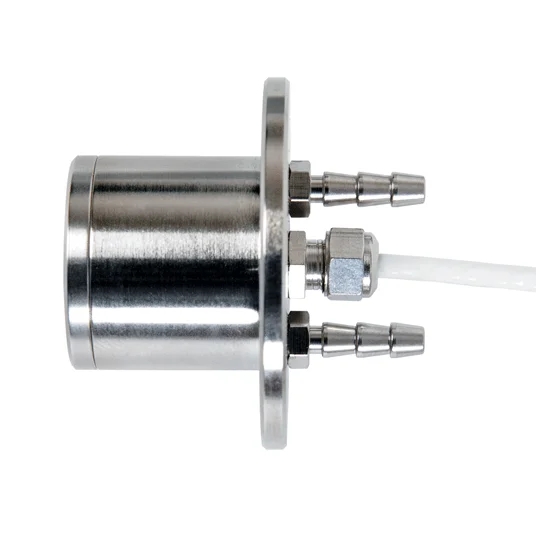

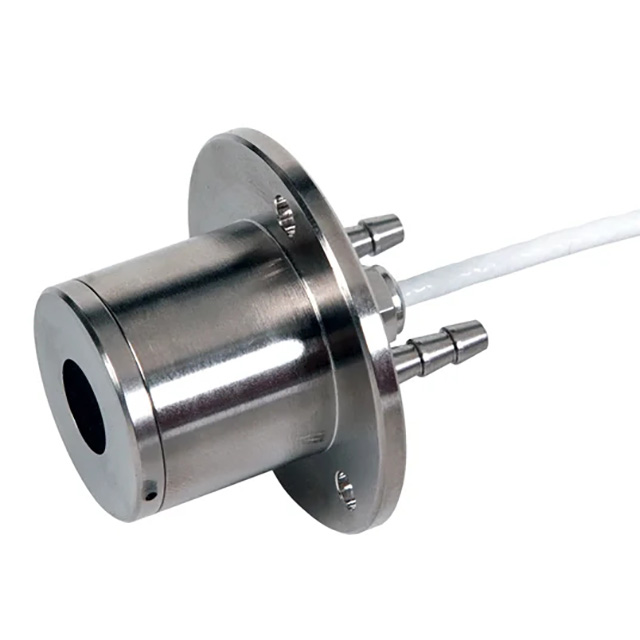

SBG01 measures heat flux in the range of (5 to 200) x 10³ W/m². Equipped with a black absorber, heat flux sensors of this type are designed for measurement in an environment in which heat flux is dominated by radiation. Using an open detector, SBG01 is also sensitive to convective heat flux. This contribution is usually ignored. Application in environments with lower than 50 x 10³ W/m² irradiance levels or environments with significant heat transport by convection is possible but requires a careful evaluation of the measurement uncertainty. SBG01’s thermopile sensor generates an output voltage proportional to the incoming irradiance. The sensor is water-cooled. There are 6 models of SBG01; each with a different rated measurement range, calibration reference irradiance level, sensitivity and response time. Water cooling is usually supplied by tap water. There are several optional body designs. The standard body is equipped with a flange. Common options are a smooth cylinder body without a flange (model -C) and threaded body (model –T). Also a thermocouple (type T or K) can be fitted upon request.

SBG01 Water-cooled Sensor unique features and benefits：

1、Robust and serviceable water tubes

2、Scratch resistant absorber coating (slightly lowered surface)

3、Safe storage with a practical protection cap

4、Durable cable with strain relief, temperature resistant up to 200 °C

Recommended uses of the SBG01 Water-cooled Sensor：

SBG01 has rapidly become the sensor of choice for fire testing. SBG01 is mainly used to test reaction to fire and fire resistance. It is also used as a calibration reference standard for test equipment for example in flammability and smoke chamber tests

SBG01 Water-cooled Sensor application field：

1、Industrial monitoring and control / heat flux and heat transfer measurement

2、Scientific research / heat and heat transfer measurement

SBG01 Water-cooled Sensor specifications：

Measurand	heat flux
Measurement range	(5, 10, 20, 50, 100, 200) x 10³ W/m²
Measurand in SI units	irradiance in W/m2
Sensor technology	both Gardon and Schmidt-Boelter
Rated cooling water temperature range	10 to +30 °C
Rated cooling water flow	> 10 l/h (0.003 l/s) preferably 30 l/h (0.01 l/s)
Rated measurement ranges	(5, 10, 20, 50, 100, 200) x 103 W/m2
5, 10 x 10³ W/m²	< 450 x 10⁻³ s
20, 50 x 10³ W/m²	< 250 x 10⁻³ s
100, 200 x 10³ W/m²	< 200 x 10⁻³ s
Limiting measurement range	150 % of rated measurement range
Output signal	DC voltage
Output signal range	> 5 x 10⁻³ V at rated measurement range
Spectral range	0 to 50 x 10⁻⁶ m
Full field of view angle	180°
Black coating emissivity	> 0.95
Calibration traceability	to ITS-90
– management system certification	ISO 9001
– accreditation	not accredited
Calibration method	SBGC secondary calibration method according to ISO 14934-3
Standard cable length	2 m (see options)
Order code standard version	SBG01/rated measurement range/cable length
Options	・Rated measurement range (5, 10, 20, 50, 100, 200) x 10³ W/m² ・Longer cable (specify total cable length in m) ・High temperature cable rated temperature range to 400 °C (specify length in m) ・Type T or type K thermocouple connected to instrument body (specify –TCT or – TCK), wire exiting next to signal cable. Wire diameter 0.5 x 10⁻³ m ・Smooth cylindrical body without flange (specify – C) ・Threaded cylindrical body without flange (specify – T), thread 1-12 UNF
