S-Series Ultra-Compact USB2.0 Color 3MP CMOS Cameras

Updated:2024-03-13

Brand: Mightex
Model: SCN-C030-U, SCE-C030-U
Product description: Mightex S-series compact USB 2.0 cameras are optimized for machine-vision applications, and they can also be used for a wide variety of other applications such as digital microscopy and medical imagin
Data download

Feedback
WeChat

QQ

Online Service

product details

S-Series Ultra-Compact USB2.0 Color 3MP CMOS Cameras Description：

Datasheet

Mightex S-series compact USB 2.0 cameras are optimized for machine-vision applications, and they can also be used for a wide variety of other applications such as digital microscopy and medical imaging, where quality, ease of use, and cost-effectiveness are crucial. These cameras have external trigger-in, strobe-out, and GPIOs. Frame rate can be as high as 6 fps in full resolution and up to 98 fps using ROI mode. In addition, a user-friendly GUI based application software and an SDK are provided for custom software development. A USB command set protocol is also provided for non-Windows based applications.

Features

Ultra compact

4-pin GPIOs

2048×1536 active imaging pixels

High-speed USB2.0 (480Mb/s)

Digital output, no need for a frame grabber

Custom programmable with SDK provided

DirectShow and TWAIN driver

USB command set for non-Windows based applications

Linux Driver

External and software trigger

Strobe output for external flash

ROI & pixel skipping/binning

No need for external power supply

OEM versions available

Applications

Digital microscopy

Machine vision

Medical imaging

Semiconductor equipment

Test instruments

Document scanners

2D barcode readers

Specifications

Parameters	SCN-C030-U	SCE-C030-U	Unit

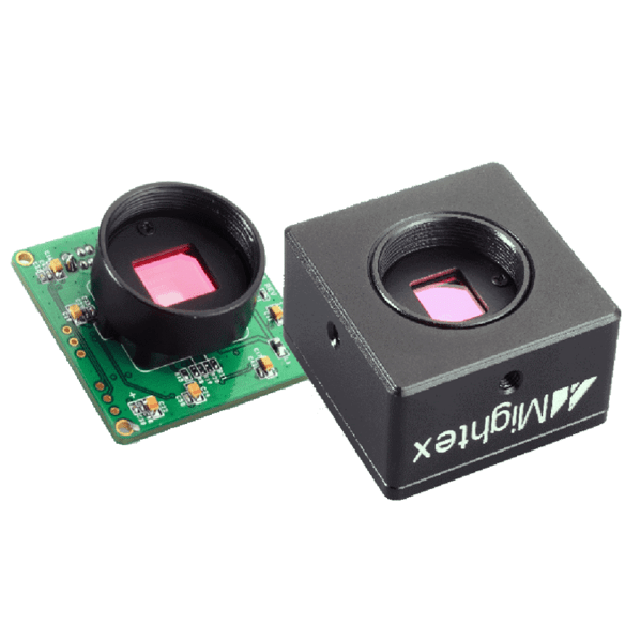

Board-Level/Enclosed	Board-Level	Enclosed
Number of GPIOs	4
Resolution	2,048 x 1,536 Color
CMOS Chip	½" (5:4) Micron MT9T001, Rolling Shutter
Pixel Size	3.2 x 3.2		µm
Active Imager Size	6.66 x 5.32		mm
Scanning System	Progressive
Dynamic Range	61		dB
Sensor SNR	43		dB
Gray Level	8		bit
Responsivity	2.1		V/lux-sec
Frame Rates* (@48MHz Clock)	6 @2048 x 1536 10 @1600 x 1200 12 @1280 x 1024 20 @1024 x 768 26 @800 x 600 32 @752 x 480 35 @640 x 480 64 @320 x 240 70 @1024 x 768 110 @768 x 480 110 @640 x 480 200 @320 x 240 325 @192 x 128 380 @64 x 64		fps
Sub Resolutions	Support Arbitrary ROI (Nx, Ny), with Nx and Ny multiples of 4
Shutter Speed (Exposure Time)	1 ~ 750		ms
Hardware Gains	0.125x ~ 8x
Trigger Mode	With external trigger
Trigger Cable	ACC-CAM-CON8
Strobe Out	Yes
Lens Mount	C– mount or CS-mount (M12.5-mount or custom-defined lens mount supported)
Built-in Filters	IR-cut (factory standard) or custom
Power Consumption	< 1.0		W
Dimension	40 x 40 x 25 (CS-mount) 40 x 40 x 30 (C-mount)	45 x 45 x 23 (CS-mount) 45 x 45 x 28 (C-mount)	mm
Weight (excluding lens)	60	120	g
