TF2 Trifield® EMF Meter

TF2 Trifield® EMF Meter Description：

Instruction Manual Quick Start Guide

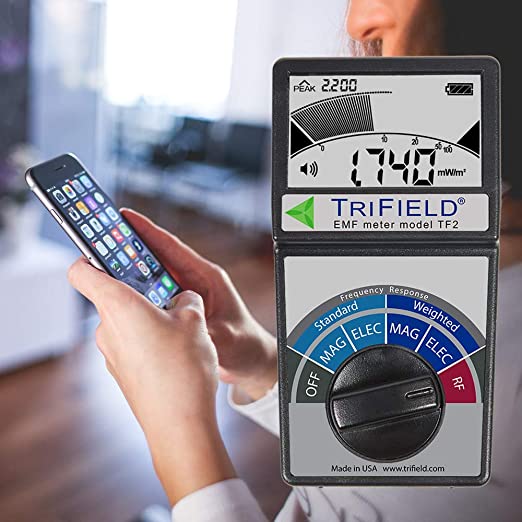

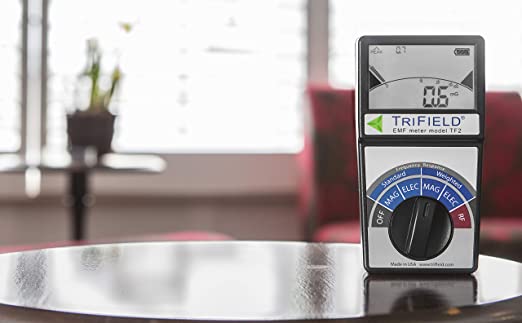

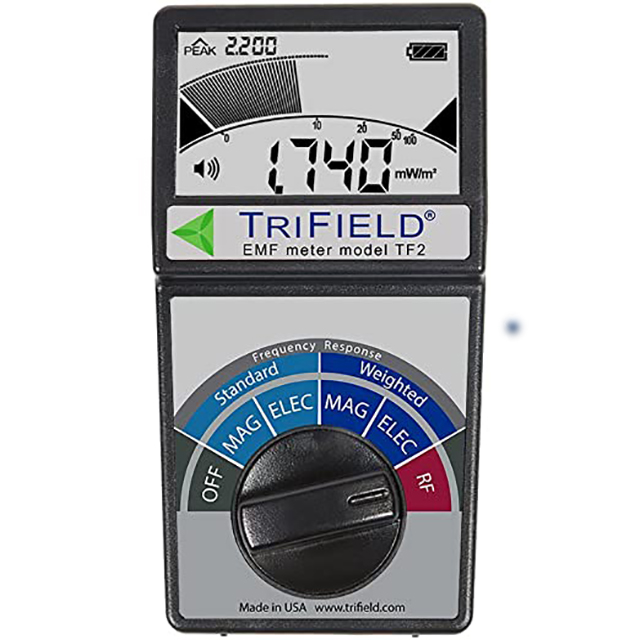

The TriField EMF Meter Model TF2 is an AC gaussmeter, AC electric field meter, and radio power density meter in a single unit, that combines all the features needed for fast, accurate measurements of electromagnetic fields (EMF). In addition to standard AC measurement modes, a special frequency weighted mode will properly scale the magnetic and electric measurements to indicate the full magnitude of currents produced by each type of field inside the human body.

Features:

Detects all three types of EMF pollution: AC magnetic, AC electric, and RF/microwave

Special frequency weighting mode for measuring electric current from EMF in the human body

AC Magnetic Mode covers 40 Hz – 100 kHz with range of 0.1 – 100.0 milligauss (mG)

AC Electric Mode covers 40 Hz – 100 kHz with range of 1 – 1000 volts per meter (V/m)

RF Mode covers 20 MHz – 6 GHz with range of 0.001 – 19.999 milliwatts per square meter (mW/m2)

AC magnetic measurements are 3-axis, allowing for quick readings, regardless of meter orientation

Large liquid-crystal display (LCD) for crystal clear, accurate readings

Adjustable backlight for use in low-light environments

Audio Indicator emits sound that helps to pinpoint EMF sources

Peak Hold captures fast pulses, for measuring fast digital signals

Operates for more than 20 hours on a 9V battery, with a low battery indicator

Applications:

Mobile phone and cell tower RF radiation

Smart meter RF radiation

Wi-Fi router and Bluetooth RF radiation

Overhead AC power line and transformer EMF emissions

Laptop, refrigerator, circuit breaker box, etc. appliance EMF emission

EMF emission inside aircraft and motor vehicles

Microwave oven leak

Location and EMF of wiring in walls

EMF from plumbing pipes used as grounding

TF2 Trifield® EMF Meter Specifications：
