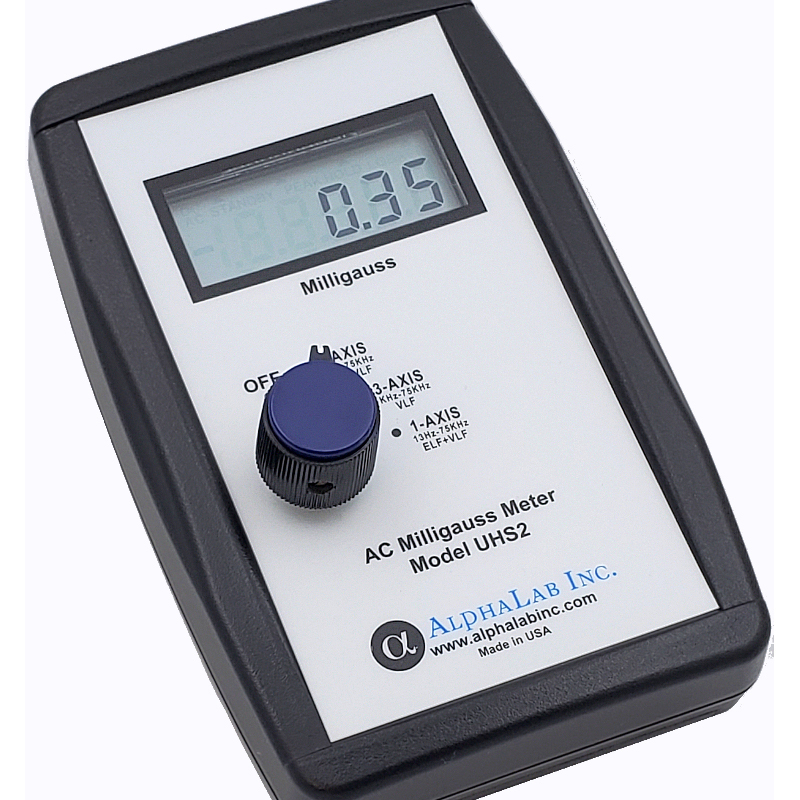

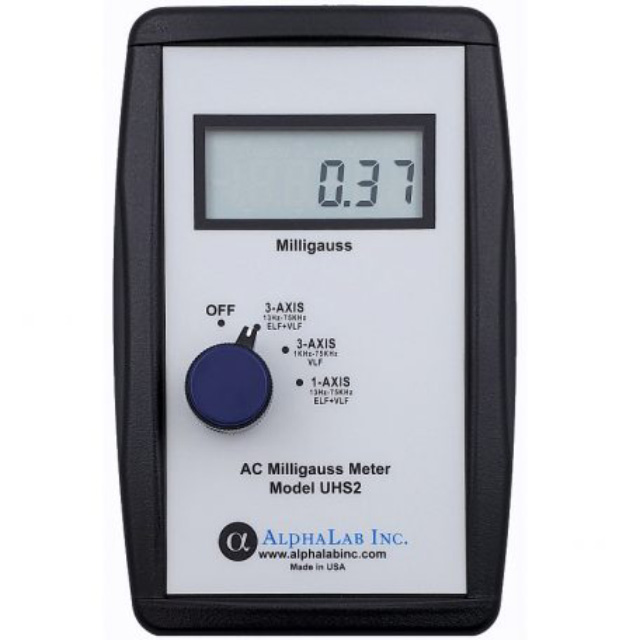

UHS2 AC Milligauss Meter

UHS2 AC Milligauss Meter Description：

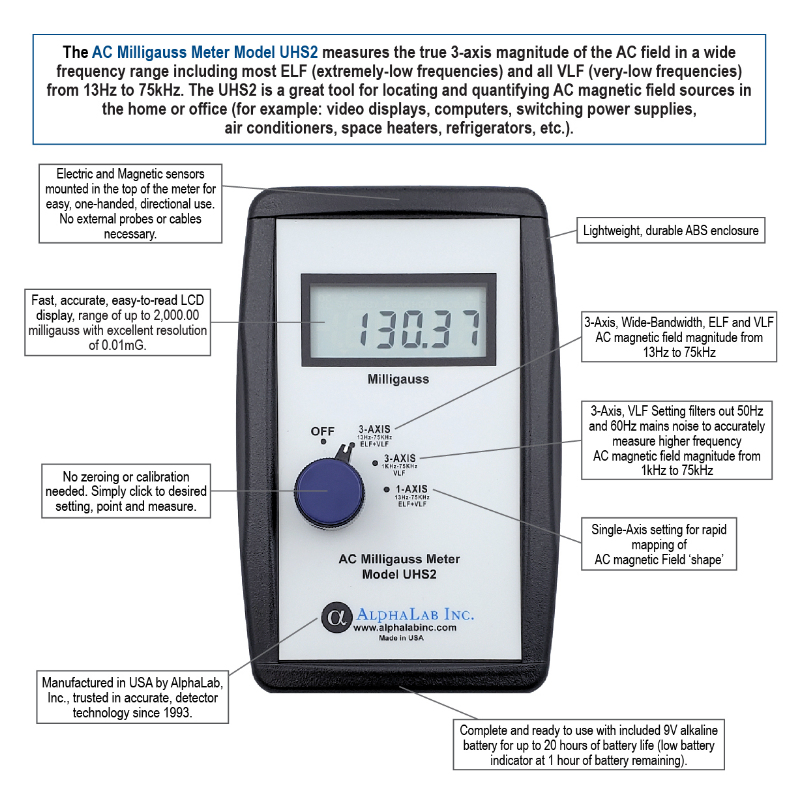

The AC Milligauss Meter Model UHS2 measures AC magnetic field in a wide frequency range of 13 Hz to 75 kHz (75,000 Hz). The frequencies include most ELF (that is, frequencies below 1 kHz) and VLF (above 1 kHz) magnetic fields. The meter measures the true 3-axis magnitude of the AC field. Two other more specialized measurements can also be performed: 3-axis VLF-only (1kHz – 75 kHz) to measure the strength of higher-frequency fields, and 1-axis full bandwidth (13 Hz – 75 kHz) to determine the principal direction of the AC magnetic field.

Most measurements will be performed with the knob turned to 3-Axis ELF+VLF. This setting is for measurement of true magnitude of magnetic field at the widest range of frequencies (ELF + VLF).

Features：

NIST Traceable

Detachable Rubber Boot

UHS2 AC Milligauss Meter Specification：

Additional information：

Rubber Boot for UHS2：

Removable rubber boot with foot that turns down compatible with AC Milligauss Meter UHS2.

Note: image is of a GM1-ST inside a boot. The meter is not included.

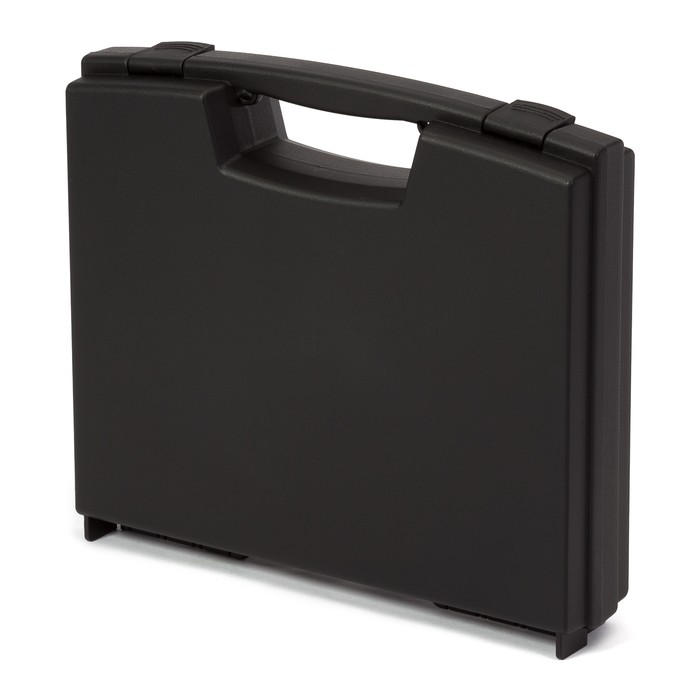

Hard Carrying Case for UHS2：

A carrying case that is compatible with the AC Milligauss Meter.
