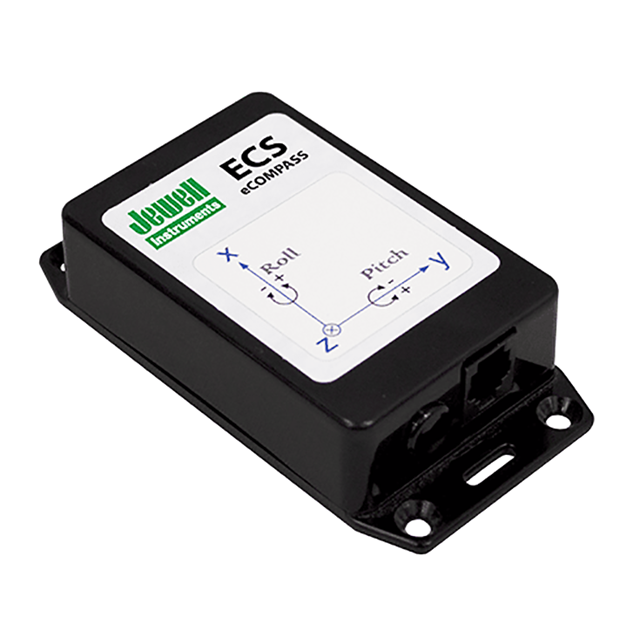

Jewell ECS eCompass Series

Updated:2026-01-23

Brand: Jewell
Model: ECS eCompass Series
Description: The ECS digital compass represents the state-of-the-art in magnetic compassing. It combines a precision 3-axis solid-state magnetometer and a rugged 2-axis electrolytic tilt sensor to provide accurate
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Jewell ECS eCompass Series Description：

Datasheet User's Guide Installation Quick Guide

The ECS digital compass represents the state-of-the-art in magnetic compassing. It combines a precision 3-axis solid-state magnetometer and a rugged 2-axis electrolytic tilt sensor to provide accurate heading and tilt measurements over a wide range of environmental conditions. The firmware and signal processing algorithms have been refined and improved over three prior generations of compasses to deliver the ultimate in performance from the available sensor data.

Specifications

Accuracy (rms)	±0.5°	Typical, Tilt <35° Dip <60°
Repeatability	±0.3°	No filter
Response Time (msec)	36	Minimum, no filter
Dip Angle Range	±80°
Tilt Range	±42°
Update Rate (measurements per second)	27.5

Accuracy	±0.3°	Factory calibrated
Repeatability	±0.20°	No filter
Range	±42°
Settling Time (sec)	0.5	No damping

Supply Voltage (V_DD₎	6 - 45Vdc unregulated 5.0Vdc regulated	4.9Vdc minimum
Supply Current	Operating: 25mA sample: 10mA Standby: 2mA	Typical

Operating Temperature	-40° to 105°C
Storage Temperature	-50° to 150°C
Humidity	0-90%	Non-condensing

Enclosure Material	(ABS) Flame Retardant Plastic UL94 VO Diecast Aluminum Alloy (Type 360.1)
PCB Size	1.6"W x 3.0"L x 0.6"H, H required for tilt sensor
PCB Mounting	4 #4 screws, 1.4″x 2.2″ spacing
Weight	Plastic: 3.2oz (90.7g) Aluminum: 7.2oz (204.1g)
Connectors	8 pin, single-row, 0.1″ friction header 6 pin RJ12 modular jack

Signal Type	RS-232 or RS-485
Baud Rate (bps)	2400, 4800, 9600, 19200, 38400 or 57600
Character Format	8 data, no parity, 1 stop
Input Buffer Size	110 characters
Output Buffer Size	110 characters
Output Format	NMEA 0183 and binary
Output Data Rate	1 to 1650 sentences per minute
Operating Modes	Continuous or sample
Angle Units	Degrees, mils, radians, 16-bit integer

Dimensions	5.43 × 2.38 × 1.22 in
Features	• Wide Operating Temperature Range • Single-Supply Operation • RS-232 & RS-485 Outputs Available • In-System Configuration & Test • Plastic or Aluminum Enclosure Options
Applications	• Unmanned Vehicles • Robotics • Weather Buoys • Antenna Positioning • Marine Navigation
