Jewell ECV eCompass Series

Updated:2026-01-23

Brand: Jewell
Model: ECV eCompass Series
Description: The ECV eCompass Series is a 3D electronic compass providing stable azimuth, pitch, and roll measurements in dynamic conditions. As an enhanced version of our ECG Series, the ECV includes a full suite
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Jewell ECV eCompass Series Description：

Datasheet User's Guide Installation Quick Guide

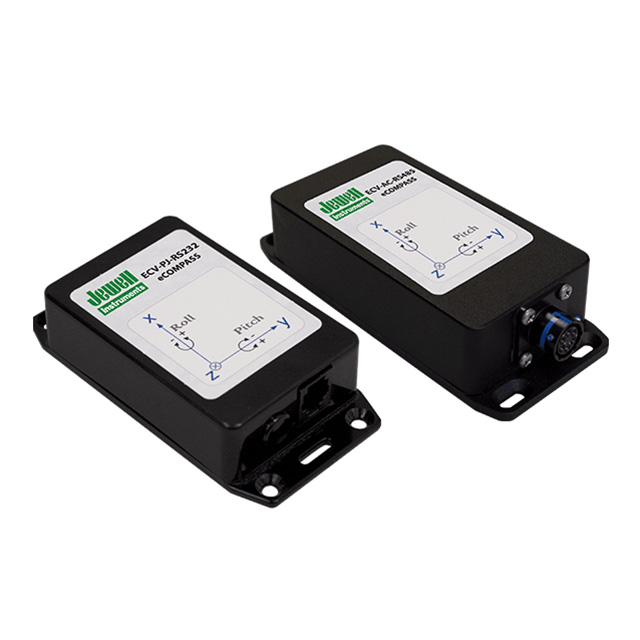

The ECV eCompass Series is a 3D electronic compass providing stable azimuth, pitch, and roll measurements in dynamic conditions. As an enhanced version of our ECG Series, the ECV includes a full suite of precision, 3-axis, MEMS sensors, and an optional dual-axis electrolytic tilt sensor, for the ultimate in near-level accuracy. A high-performance microcontroller orchestrates the fast measurement sequence, sensor calibration adjustments, frame-of-reference translations, trigonometric calculations, and advanced signal processing required to provide accurate heading, pitch, and roll outputs.

Specifications

Accuracy (rms)¹	±0.5° ±3.0°	Static, Tilt <35° Dip <60° Dynamic, rate <150°/sec
Repeatability	±0.3°	Static, no filter
Response Time (msec)	36	Minimum, no filter
Dip Angle Range	±80°
Tilt Range	±90° Pitch/±180° Roll
Update Rate (measurements per second)	27.5

Accuracy	±0.3°	Factory calibrate
Repeatability	±0.2°	No filter
Range	±90° Pitch/±180° Roll	(±42°) electrolytic tilt only
Settling Time (msec)	50	Gyro enabled

Supply Voltage (V_DD₎	7-45Vdc unregulated
Supply Current (mA)	Operating: 40 Idle: 10 Standby: 0.5	Typical

Operating Temperature	-40° to 105 °C	-20°C with electrolytic tilt
Storage Temperature	-50° to 150°C
Humidity	0-90%	Non-condensing
Shock (g)	200	Maximum horizontal (with electrolytic tilt)

Enclosure Material	(ABS) Flame Retardant Plastic UL94 VO Diecast Aluminum Alloy (Type 360.1)
PCB Mounting	4 #4 screws, 1.4″x 2.6″ spacing
Connectors	8 pin, single-row, 0.1″ friction header 6 pin RJ12 modular jack

Signal Type	RS-232 and RS-485
Baud Rate (bps)	2400, 4800, 9600, 19200, or 38400
Character Format	8 data, no parity, 1 stop
Input Buffer Size	110 characters
Output Buffer Size	110 characters
Output Format	NMEA 0183 and binary
Output Data Rate	1 to 1650 sentences per minute
Operating Modes	Continuous or sample
Angle Units	Degrees, mils, radians, 16-bit integer

Features	• Exceptional dynamic performance • High accuracy • Precise factory calibration • Wide operating temperature range • RS232 & RS485 output available • Plastic or Aluminum enclosure options • Fast response • Low power • Two independent serial channels • In-System Configuration & Test
Applications	• Unmanned vehicles • Robotics • Platform stabilization • Excavation machinery
